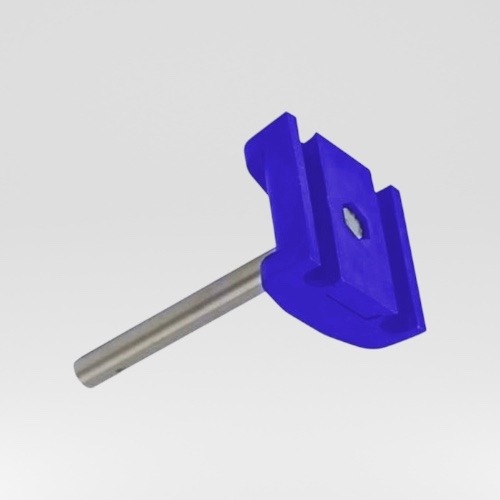

Double clamps for round side guide rails with stainless steel rod

Double clamps for round side guide rails with stainless steel rod

Clamp in polyamide with stainless steel A2-70 screw
Rod in stainless steel AISI 304 (Aisi 1.4301)

Double clamps for round side guide rails types

Guide rail distance 40
DCR 12-40-L100
DCR 12-40-L150
DCR 12-40-L200
DCR 12-40-L250

Guide rail distance 66
DCR 12-66-L100
DCR 12-66-L150
DCR 12-66-L200
DCR 12-66-L250

Essential components in various mechanical and industrial systems

Double clamps for round side guide rails with a stainless steel rod are essential components in setting up and maintaining stable, adjustable guide rails in various mechanical and industrial systems. Here’s a detailed look at their features and applications:

Features of Double Clamps for Round Side Guide Rails

1. Material: Typically made from durable materials such as stainless steel, which is preferred for its corrosion resistance, strength, and suitability in sanitary environments required in food, pharmaceutical, and medical industries.
2. Design: Double clamps are designed to securely hold round side guide rails. The clamps usually feature two halves that encircle the rail and are tightened together, often with bolts or screws, ensuring a firm grip on the rail.
3. Adjustability: These clamps allow for precise positioning of the guide rails, which is crucial for the proper alignment and smooth operation of conveyor systems or other machinery. The adjustability also facilitates easy maintenance and replacement of rails when necessary.
4. Compatibility: They are designed to fit specific diameters of round side guide rails, making them versatile for different sizes of rails used across various machinery.
5. Installation: Installation is straightforward, usually requiring only basic tools to secure the clamps around the rails and mount them to the machinery or framework.

Conveyor Systems

In industries like packaging, food processing, and manufacturing, double clamps are used to set up side guide rails on conveyor belts. These rails help in guiding products and materials as they move along the belt, ensuring they travel in the correct path without slipping off.

Automated Machinery

In automated systems where precision is crucial, such as in robotic assembly lines or automated packaging machinery, double clamps provide the necessary stability and adjustability for the guide rails.

Food and Pharmaceutical Industries

The stainless steel construction makes these clamps ideal for environments where hygiene and cleanliness are paramount. They resist corrosion from cleaning agents and do not contaminate the products.

Medical Equipment

Double clamps can also be found in medical equipment where guide rails are needed to support moving parts or guide instruments and devices within a sterile environment.

Ensuring the stability

Double clamps for round side guide rails with a stainless steel rod are pivotal in ensuring the stability, alignment, and proper functioning of guide rails in various industrial settings. Their robust construction and adjustability make them a reliable choice for many applications.
