Tapped base pillow block PAPL ball bearing unit

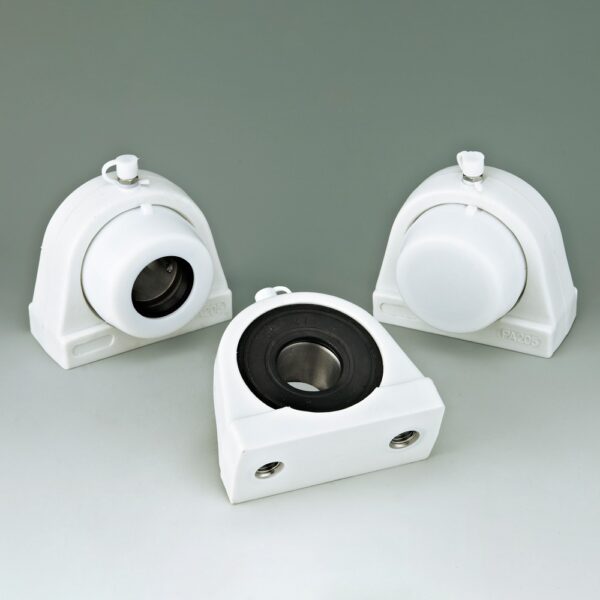

Tapped base pillow block unit PAPL

IP54 bearing housing in Polypropylene. (Colour in Black, White or Green)
IP54 bearing housing has adjustable pre-lubricated chrome steel or pre-lubricated stainless steel ball bearing.
The bearing can be re-lubricated by means of grease-nipple or a quick coupler.
IP54 bearing housing is fitted with clip-on safety cap.
Rotary shaft seal ring (TC) with extra dust-protection lip in NBR rubber.

Tapped base pillow block unit PAPL features and advantages

  • Operating temperature between -20C and +100C.
  • Economical operation.
  • Long life bearing insert.
  • Concept and design to meet all safety requirements.
  • Interchangeable with standard cast iron flanged bearing supports.
  • Max misalignment between shaft and housing: 3 degree.
  • Completely sealed units.
  • Ball bearing pre-lubricated with long-life grease, which is ideal in applications in humid conditions, with water, alkaline or acid solutions.

Tapped base pillow block unit PAPL available sizes

Shaft Diameter Catalog No.
Ø20 mm PAPL 204
Ø25 mm PAPL 205
Ø30 mm PAPL 206
Ø35 mm PAPL 207
Ø40 mm PAPL 208
Ø45 mm PAPL 209
Ø50 mm PAPL 210
Ø55 mm PAPL 211
Ø60 mm PAPL 212

Tapped base pillow block unit PAPL with Inch thread also available on request

The PAPL20x can be supplied with ppen cap or closed cap.
Open cap, suffix “OC” is added to bearing numbers. ex.: PAPL204OC
Closed vap, suffix “CC” is added to bearing numbers. ex.: PAPL204CC

We are ready to deliver hygienic solutions to you and your business, whether you need machinery feet, waterproof IP67 bearings or stainless bearing units, we have it all.

    Contact us

    Do you need more information? Get in touch today. We will help you find the right type of machin and levelling foot for your needs.
