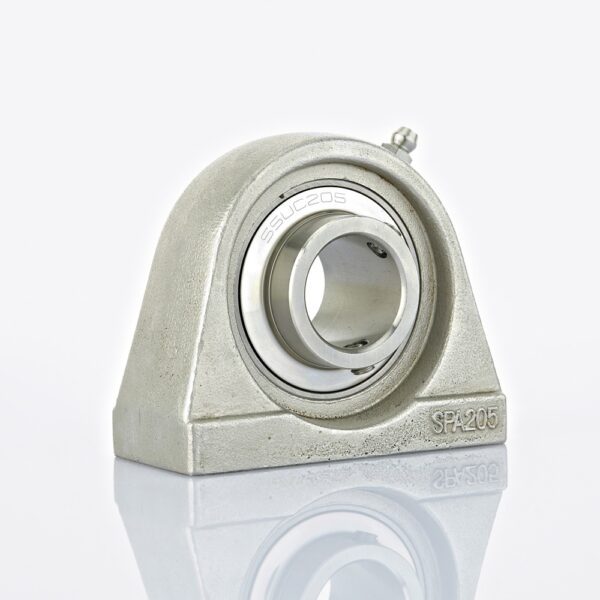

Tapped base pillow block bearing unit SPA in stainless steel

Mounted tapped base pillow block bearing unit SPA in stainless steel.

The stainless steel Tapped Base Pillow Block bearing units type SPA is suitable for the food industry and other demanding environments, due to the hygienic design and minimum of maintenance.
The stainless steel bearing units are characterized by high quality and finish for both the bearing and the bearing housing.

Tapped base pillow block bearing unit SPA in stainless steel advantages.

The bearing unit has adjustable pre-lubricated Aisi440C stainless steel ball bearing.
The bearing can be re-lubricated by stainless steel Aisi304 grease-nipple or a quick coupler.
The bearing unit can be fitted with safety cap of polypropylene or Stainless steel AISI 304.
The bearing unit can be fitted with rotary shaft seal ring (TC) with extra dust-protection lip in NBR rubber and with Stainless steel spring.

Tapped base pillow block bearing unit SPA in stainless steel features.

• Stainless steel housings AISI 304
• Stainless steel bearings AISI 440C (pre-lubricated)
• Stainless steel grease nipples AISI304 M6x1mm
• No surface coating are required
• Excellent life span
• Operating temperature from -30°C to +120°C.
• Cap material: Polypropylene or Stainless steel AISI 304
• Oil seal material: NBR Rubber with stainless spring

Tapped base pillow block bearing unit SPA in stainless steel sizes available.

Tapped Base with Inch thread also available on request

Mounted Tapped Base Pillow Block Bearing Unit SPA in Stainless Steel

Usage of Mounted Tapped Base Pillow Block Bearing Unit SPA

The Mounted Tapped Base Pillow Block Bearing Unit SPA is a precision-engineered bearing solution designed for hygienic and heavy-duty industrial applications. Its tapped base design allows for secure mounting with threaded fasteners, ensuring enhanced stability and load distribution. The self-aligning bearing insert compensates for shaft misalignment, reducing wear and extending equipment lifespan. This unit is ideal for washdown environments, providing resistance to corrosion, moisture, and chemical exposure.

Industries Benefiting from SPA Pillow Block Bearing Units

The stainless steel tapped base pillow block bearing unit SPA is widely used across multiple hygienic and industrial sectors, including:

• Food Processing Industry – Essential for conveyors, slicers, and mixing machines, where sanitation and corrosion resistance are critical.
• Pharmaceutical Industry – Supports sterile production environments, ensuring contamination-free operation in medical and pharmaceutical manufacturing.
• Beverage Industry – Used in filling lines, bottling systems, and brewing equipment, providing high resistance to moisture and chemical cleaners.
• Chemical Industry – Designed to withstand aggressive chemicals and harsh operating conditions, ensuring long-term durability.

Material and Construction

Manufactured from AISI 304 or AISI 316 stainless steel, the SPA pillow block bearing unit offers superior resistance to corrosion, extreme temperatures, and harsh cleaning agents. Its smooth, polished surface complies with EHEDG and 3A sanitary standards, preventing bacterial growth and allowing for easy cleaning. Equipped with food-grade seals and stainless steel bearings, this unit ensures high performance, longevity, and reliability in demanding environments.

With its robust construction, hygienic design, and exceptional durability, the Mounted Tapped Base Pillow Block Bearing Unit SPA is an essential component for industries requiring precision, efficiency, and compliance with stringent hygiene standards.
