Sanitary swivel side guide bracket in stainless steel

Sanitary Swivel Side Guide Bracket in Stainless Steel AISI 304 (1.4301)

A swivel side guide bracket in stainless steel AISI 304 (1.4301) is an essential component for sanitary production lines where guiding, adjustability, and cleanability must go hand in hand. The SG-SW swivel side guide bracket is designed for washdown environments and regulated industries, helping reduce contamination risk while supporting smooth and stable product flow.

SG-SW Swivel Side Guide Bracket – Product Overview

The SG-SW side guide bracket is supplied as a complete assembly featuring:

• Star knob in polyamide (PA) with brass insert for fast, tool-free adjustment

• Eyebolt and washer in stainless steel AISI 304 (1.4301) for strength and corrosion resistance

This setup makes adjustments quick for operators while keeping the construction robust for daily industrial use.

Sanitary Swivel Side Guide Design for Easy Cleaning

All SG-SW and HSG-SW sanitary swivel side guides are engineered with pürüzsüz yüzeyler and without unnecessary ribs, flanges, recesses, or mounting holes. This sanitary design minimizes crevices where residue can build up and bacteria can hide.

Key hygiene benefits:

• Easier and faster cleaning

• Reduced risk of hidden contamination

• Improved sanitation efficiency during washdowns

• Better support for hygiene-focused production standards

Stainless Steel Swivel Side Guide Brackets for Demanding Industries

Sanitary production environments often require components that withstand frequent cleaning, water exposure, and cleaning chemicals. Stainless steel AISI 304 (1.4301) is widely used for sanitary machinery components because it offers strong corrosion resistance and durability in many processing and packaging applications.

The SG-SW series is built for industries with continuously increasing demands on:

• material resistance

• easy-to-clean design

• reliable adjustability and stable guiding

Common application areas include medical equipment, food and drug processing equipment, paketleme makineleri, 3A design meat & poultry processing equipment, Ve dairy processing machines.

Available Types – SG-SW Sanitary Swivel Side Guide Bracket

The SG-SW swivel side guide bracket with star knob, eyebolt and washer in AISI 304 (1.4301) is available in:

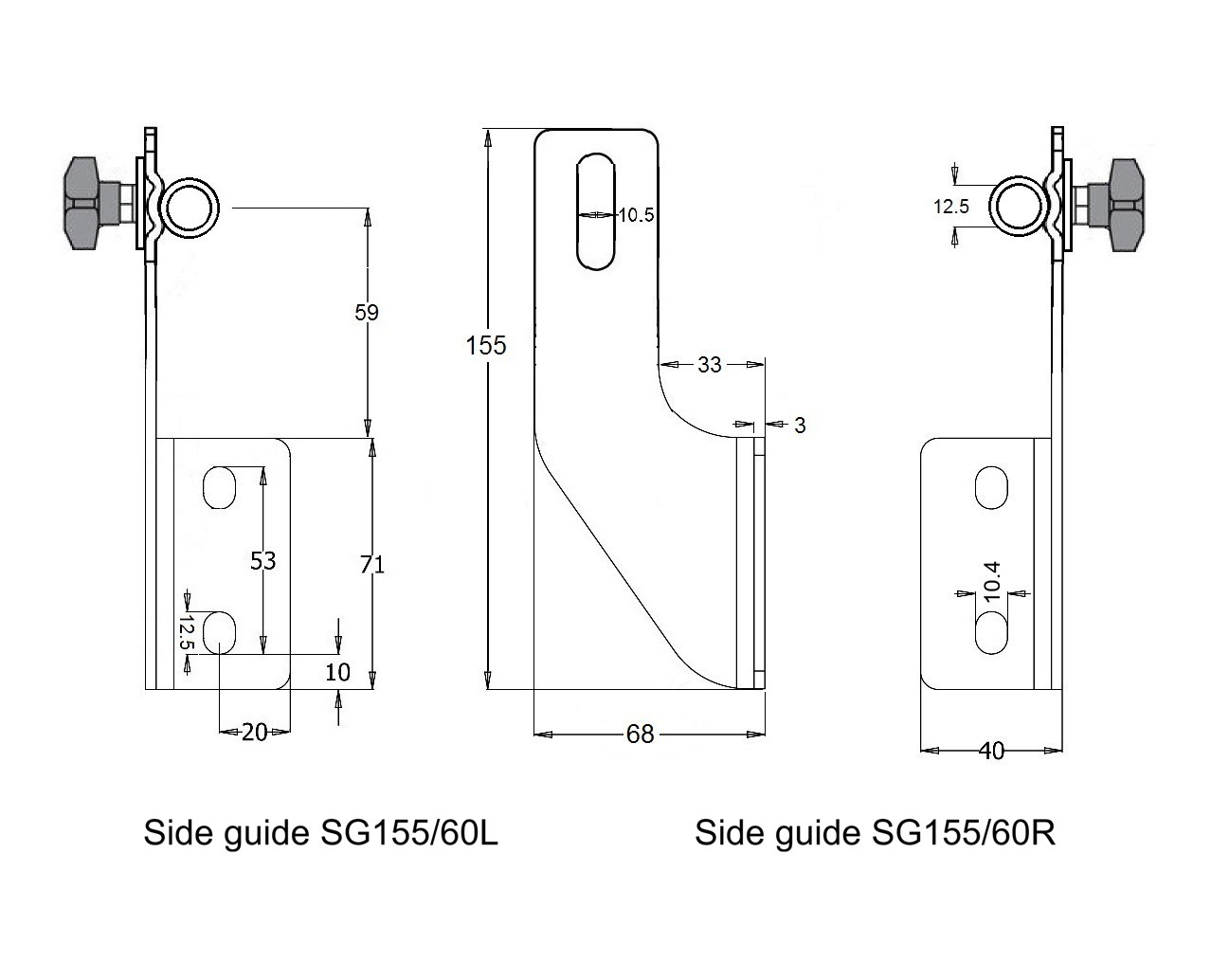

• SG155-60 SW

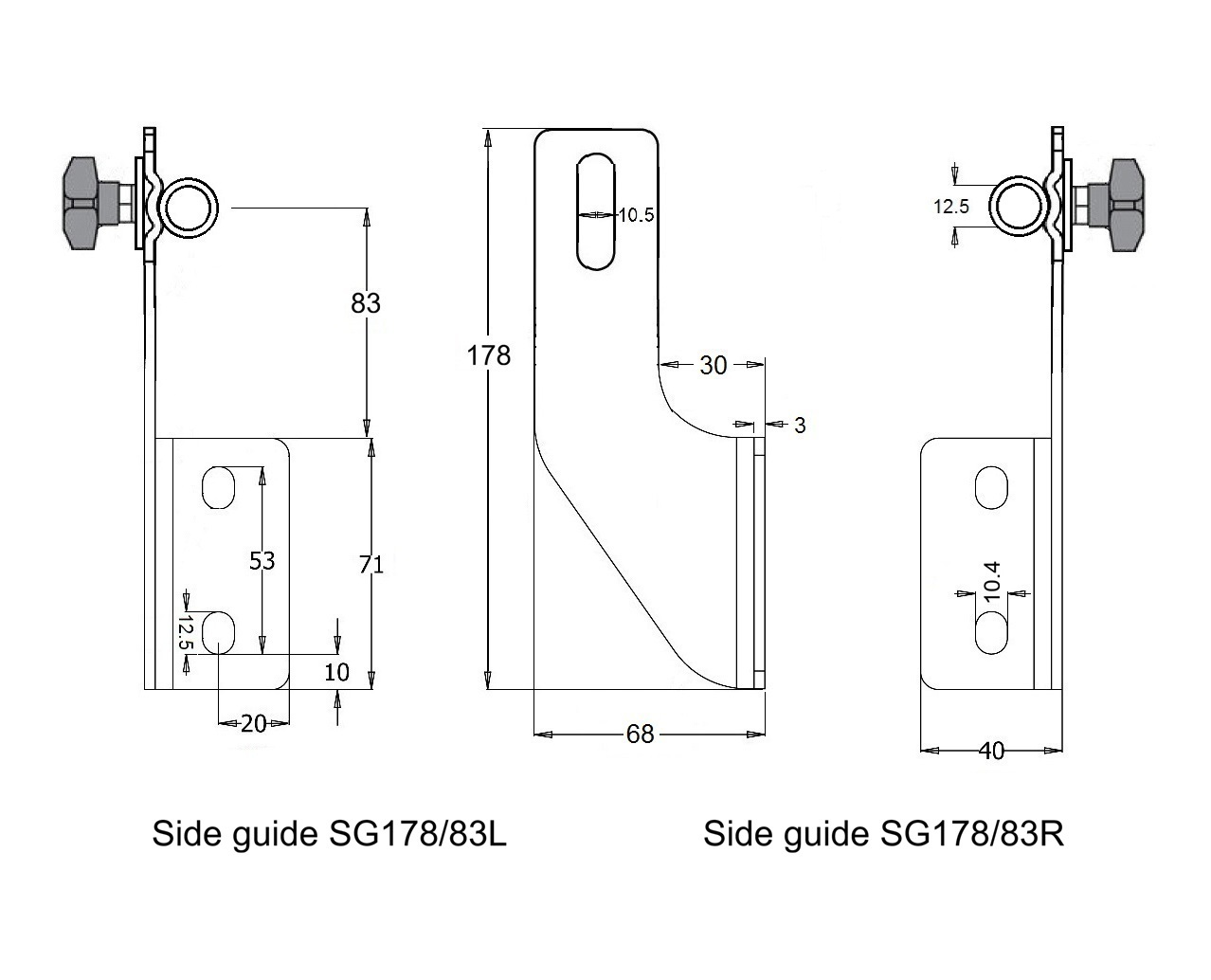

• SG178-83 SW

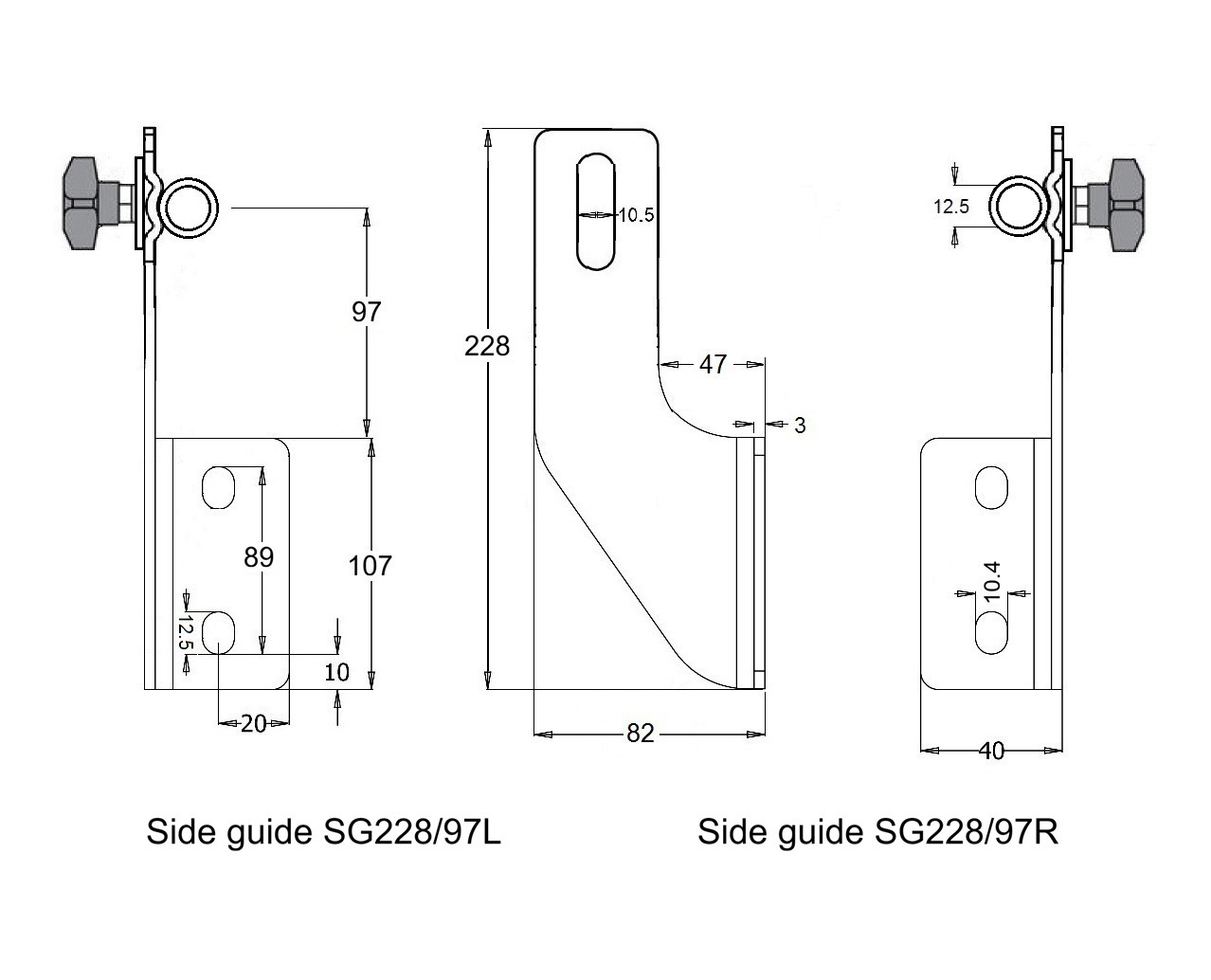

• SG228-97 SW

Why Swivel Side Guides Are Crucial Components

Swivel side guide brackets help maintain consistent product alignment and smooth transport—especially important on lines with format changes or varying product sizes. In sanitary applications, the bracket design must support both performance and sanitation.

Tıbbi malzeme

Designed to tolerate frequent cleaning and disinfectants while supporting sterile and controlled environments.

Gıda ve İlaç İşleme Ekipmanları

Supports sanitary operation by reducing residue traps and enabling thorough cleaning to help prevent cross-contamination.

Paketleme Makineleri

Provides durable guiding under continuous operation and supports efficient adjustments for different package sizes.

3A Design Meat & Poultry Processing Equipment

Sanitary swivel side guides support smooth, non-absorbent, easy-to-clean surfaces—important where bacterial control is critical.

Süt İşleme Makineleri

Helps resist residue build-up and supports repeatable sanitation routines to protect product quality and food safety.

Material Choice: Built for Hygiene and Durability

Kullanarak AISI 304 (1.4301) for the stainless components improves corrosion resistance and long-term reliability in wet, frequently cleaned environments. The polyamide star knob with brass insert provides comfortable handling and strong thread performance—ideal for quick, repeatable adjustments on production lines.
