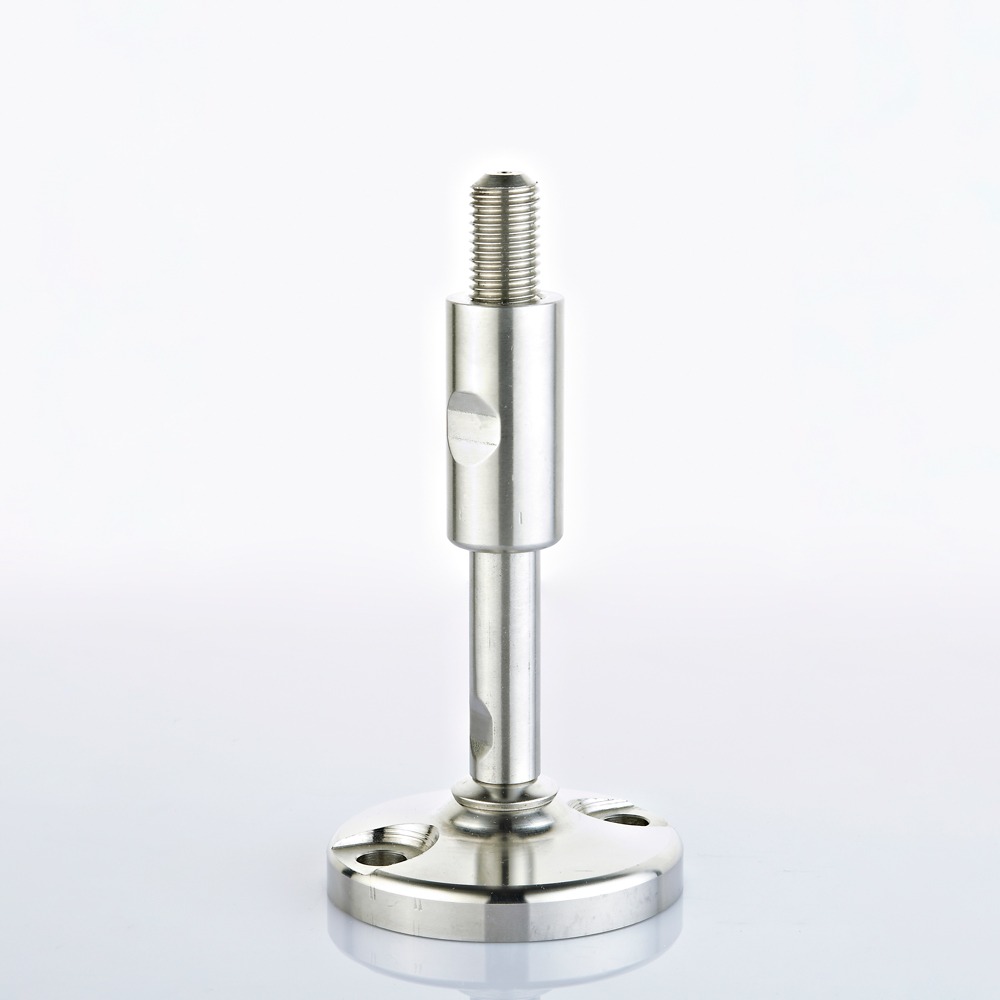

Stainless feet in extra hygienic design EHSF with floor lock holes

Stainless feet in extra hygienic design EHSF with floor lock holes

Designed for heavy load in harsh environments under tough conditions
Hygienic stainless feet can be applied with rubber pad for vibration reduction and anti-slip properties
Our hygienic stainless feet are provided with FDA certificate (FDA CFR 21 177 2600) with unique batch ID number for food safety traceability

Stainless feet in extra hygienic design features and advantages

The spindles are smooth at the end towards the base and the threads are protected by a sleeve to ensure easy cleaning. The sleeve also functions as a nut.
EHSF extra hygienic stainless feet have a rounded, hygienic design which makes it easy to clean and is for suitable for demanding sanitary applications.
EHSF extra hygienic stainless feet can cope with up to 10 degree slopes on floors and equipment.

Stainless feet in extra hygienic design materials

EHSF extra hygienic stainless feet embedded rubber with FDA Certificate according to FDA CFR 21 177 2600.

Base plate material description:
Stainless steel Aisi 304 or Aisi 316

Spindle material description:
Stainless steel A2-70 or A4-70

Rubber base material description:
NBR Rubber (Nitrile rubber CAS no. 9005-98-5)
FDA Certificate according to FDA CFR 21 177 2600

All materials are highly resistant to chemicals and commonly applied cleaning agents and to resistant oils and fats.

Stainless feet in extra hygienic design sizes

EHSF extra hygienic stainless feet base are available in a wide range, giving the optimal flexibility and choice.



EHSF Base Size Base Diameter D
EHSF 39 38 mm
EHSF 59 58 mm
EHSF 79 78 mm
EHSF 99 98 mm
EHSF 119 118 mm
EHSF 139 138 mm
EHSF 159 158 mm
EHSF 179 178 mm
EHSF 199 198 mm
EHSF 249 248 mm
EHSF 299 298 mm



For other Base Diameter D, please contact us
Nominel load depend on the spindle threads
For rubber pad, suffix “R” is added to numbers. ex.: EHSF79-M16-L140-R

EHSF extra hygienic stainless feet spindles and sleeves are available in a wide range, giving the optimal flexibility and choice.



EHSF Spindle and sleeve diameter
M16 M20 M24 M30 M36 M42 M48



EHSF Spindle length (L) and Sleeve length (H)
L=140 mm H=55 mm Min 80 mm to Max 120 mm
L=180 mm H=75 mm Min 100 mm to Max 160 mm
L=220 mm H=95 mm Min 120 mm to Max 200 mm
L=260 mm H=115 mm Min 140 mm to Max 240 mm
L=300 mm H=125 mm Min 180 mm to Max 280 mm



For other threaded spindle length (L), please contact us
Threads in inch is available upon request
The thread can also be customized according to specific request, ex trapezoid thread etc.

Stainless feet in extra hygienic design delivery option

For large orders we offer to supply the base and spindles separate
The advantage is flexibility for the costumer which are using many different sizes of spindles.

    Contact us

    Do you need more information? Then get in touch today. We will help you find the right type of machin and levelling foot for your needs.
