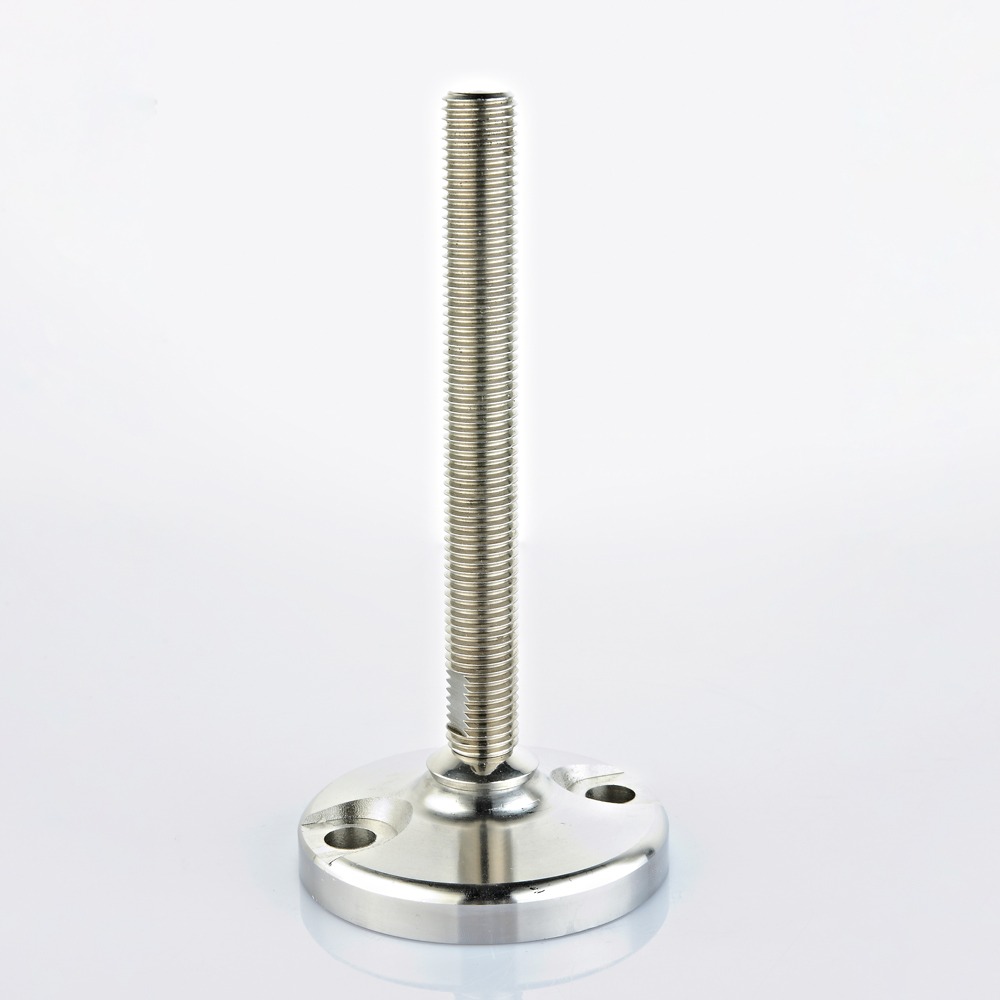

Hygienic stainless feet HSF with floor lock holes and fully-threaded spindle

Hygienic stainless feet HSF with floor lock holes and fully-threaded spindle

Designed for heavy load in harsh environments under tough conditions
Hygienic stainless feet can be applied with rubber pad for vibration reduction and anti-slip properties
Our hygienic stainless machinery feet are provided with FDA certificate (FDA CFR 21 177 2600) with unique batch ID number for food safety traceability

Stainless feet in hygienic design features and advantages

HSF hygienic stainless feet have a rounded, hygienic design which makes it easy to clean.
HSF hygienic stainless feet can cope with up to 10 degree slopes on floors and equipment.

Stainless feet in hygienic design materials

HSF hygienic machine feet embedded rubber with FDA Certificate according to FDA CFR 21 177 2600.

Base plate material description:
Stainless steel Aisi 304 or Aisi 316

Spindle material description:
Stainless steel A2-70 or A4-70

Rubber base material description:
NBR Rubber (Nitrile rubber CAS no. 9005-98-5)
FDA Certificate according to FDA CFR 21 177 2600

All materials are highly resistant to chemicals and commonly applied cleaning agents and to resistant oils and fats.

Machine feet in hygienic design sizes

HSF hygienic stainless feet base are available in a wide range, giving the optimal flexibility and choice.

For other Base Diameter D, please contact us
Nominel load depend on the spindle threads
For rubber pad, suffix “R” is added to numbers. ex.: HSF79-M16-L150-R

HSF hygienic stainless feet spindles are available in a wide range, giving the optimal flexibility and choice.

For other threaded spindle length (L), please contact us
Threads in inch is available upon request
The thread can also be customized according to specific request, ex trapezoid thread etc.

Stainless feet in hygienic design delivery option

For large orders we offer to supply the base and spindles separate
The advantage is flexibility for the costumer which are using many different sizes of spindles

At NHK machinery parts you will find a wide range of products in the stainless steel machine feet category
